The Philosophy of System Design​

Concepts

  • Trade-offs: There is rarely a single correct answer or perfect solution in system design
  • Analysis: It is not about memorizing facts, but about analyzing trade-offs to decide which option is better for a specific problem
  • Goal: The objective is to design effective systems to solve very large problems

The Three Core Data Operations​

Context: At a high level, no matter how complex a system is, it boils down to three actions

Moving Data​

Concepts

  • Data moves between components (RAM to CPU, CPU to Disk) or between machines across the world
  • Moving data across networks and different data centers adds complexity compared to local movement

Storing Data​

Concepts

  • Data can be stored in volatile memory (RAM) or persistent storage (Disk)
  • Different storage methods (Databases, Blob stores, File systems) have different trade-offs
  • Critical warning: Bad design choices in storage are very hard to correct later. Migrating data is much harder than refactoring code

Transforming Data​

Concept: This involves taking input data and manipulating it to get useful output

Example: Aggregating raw server logs to calculate the percentage of successful vs. failed requests

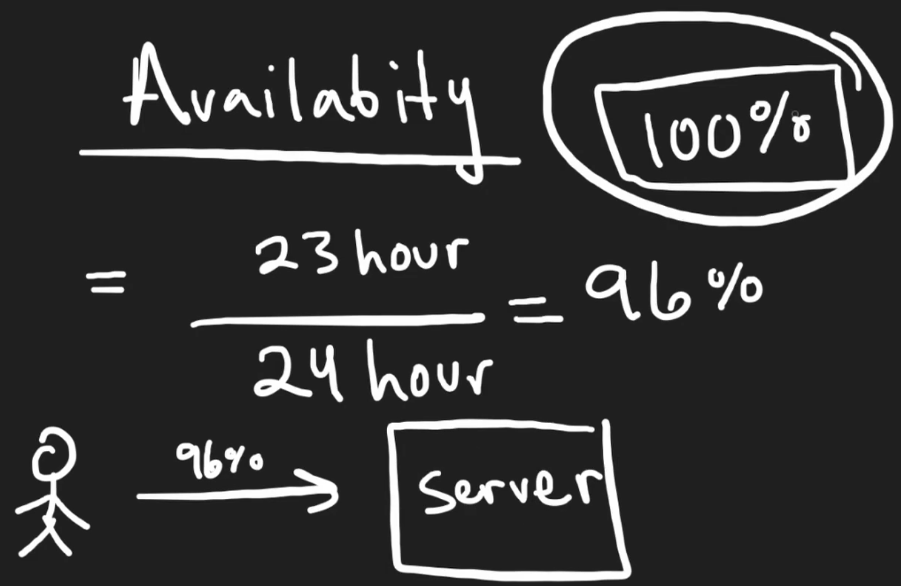

Availability​

Concept: The percentage of time a service is functioning and able to respond to requests

Formula: Availability = uptime / (uptime + downtime)


The Nines​

Concepts

  • Availability is measured in nines
  • 99% (Two Nines): Down for about 3.65 days per year. (Not very good for major businesses)
  • 99.999% (Five Nines): Down for only about 5 minutes per year. (Very solid)

SLO vs. SLA:​

Concepts

  • SLO (Service Level Objective): The internal goal developers set for the system (e.g., We want 99.999% uptime)
  • SLA (Service Level Agreement): An agreement with the customer. If the SLO is not met, there are consequences, such as a partial refund

Reliability, Redundancy, and Fault Tolerance​

Concepts: These terms are often used interchangeably but have specific meanings regarding system failure

  • Reliability: The probability that the system will not fail
    • Adding a second server increases reliability because if one fails, the other works
  • Fault tolerance: The ability of a system to continue functioning even if a part of it fails
    • Redundancy: Having unnecessary copies of components (like a second server running the exact same code)
    • You don't need both to handle traffic, but the copy exists to take over in case of failure
  • Single point of failure: A system with only one server is a single point of failure. If it crashes, the whole system dies

Throughput​

Concepts: Throughput measures how much work a system can handle over a period of time. It is measured in three main ways

  • Requests Per Second (RPS): Used for servers. How many user requests can be handled concurrently?
  • Queries Per Second (QPS): Used for databases. Conceptually similar to RPS but specific to reading/writing data
  • Bytes per second: Used for data pipelines
    • Useful when processing massive data not tied to specific user requests (e.g., processing 1 Terabyte of logs)
    • Helps calculate how long a job will take (e.g., processing 1TB at 1GB/sec takes 1,000 seconds)

Scaling Strategies​

Context: To improve availability and throughput, you can scale the system

  • Vertical scaling
    • Making the single server better (more RAM, better CPU)
    • Pros: Simple to design
    • Cons: Limited by hardware physics and remains a single point of failure
  • Horizontal scaling
    • Adding more servers (copies) rather than making one server stronger
    • Pros: Increases reliability and redundancy; virtually unlimited scaling potential
    • Cons: More complex. Requires a Load Balancer to distribute traffic and makes database management harder (distributed data)

Latency​

Concepts

  • The amount of time it takes for a single operation to complete (e.g., 1 second for a page to load)
  • Throughput vs. latency
    • Throughput = How many requests per second
    • Latency = How fast is one request
  • Reducing latency
    • Caching: Storing data in faster storage. Reading from Cache (nanoseconds) is orders of magnitude faster than RAM (microseconds)
    • Geography: Distance matters. A user on the other side of the world experiences high latency
    • Solution: Place servers in different parts of the world so users connect to a server physically closer to them

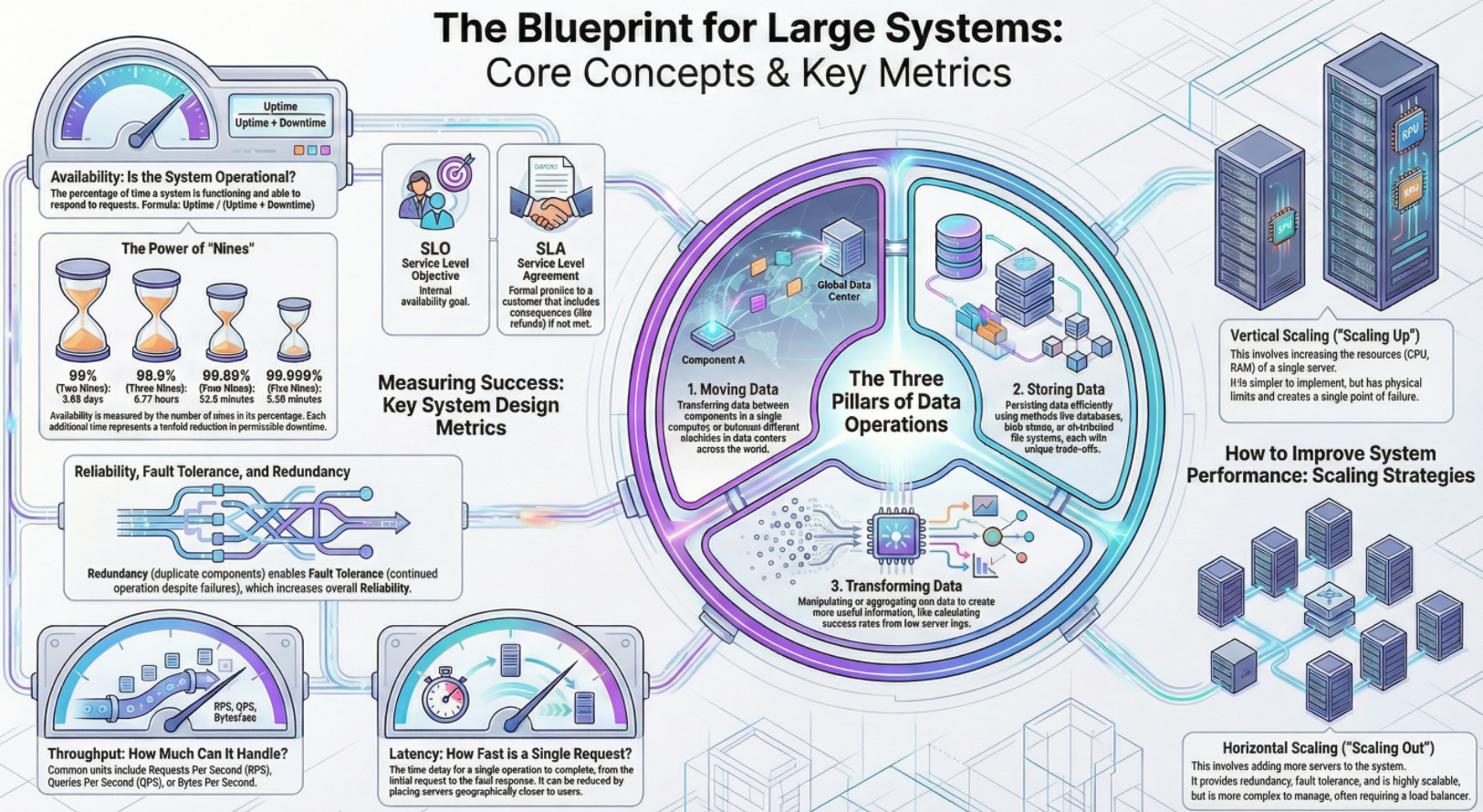

Infographics​
